| 规格型号 | 节线长 | 齿数 | 规格型号 | 节线长 | 齿数 |
| 966-14M | 966.00 | 69 | 1932-14M | 1932.00 | 138 |
| 1036-14M | 1036.00 | 74 | 1946-14M | 1946.00 | 139 |
| 1064-14M | 1064.00 | 76 | 1960-14M | 1960.00 | 140 |
| 1092-14M | 1092.00 | 78 | 2002-14M | 2002.00 | 143 |
| 1120-14M | 1120.00 | 80 | 2100-14M | 2100.00 | 150 |
| 1148-14M | 1148.00 | 82 | 2240-14M | 2240.00 | 160 |
| 1190-14M | 1190.00 | 85 | 2310-14M | 2310.00 | 165 |
| 1246-14M | 1246.00 | 89 | 2450-14M | 2450.00 | 175 |
| 1260-14M | 1260.00 | 90 | 2590-14M | 2590.00 | 185 |
| 1288-14M | 1288.00 | 92 | 2660-14M | 2660.00 | 190 |
| 1316-14M | 1316.00 | 94 | 2800-14M | 2800.00 | 200 |
| 1344-14M | 1344.00 | 96 | 3108-14M | 3108.00 | 222 |
| 1400-14M | 1400.00 | 100 | 3150-14M | 3150.00 | 225 |
| 1414-14M | 1414.00 | 101 | 3304-14M | 3304.00 | 236 |
| 1442-14M | 1442.00 | 103 | 3360-14M | 3360.00 | 240 |
| 1456-14M | 1456.00 | 104 | 3500-14M | 3500.00 | 250 |
| 1470-14M | 1470.00 | 105 | 3850-14M | 3850.00 | 275 |
| 1484-14M | 1484.00 | 106 | 4326-14M | 4326.00 | 309 |
| 1512-14M | 1512.00 | 108 | 4536-14M | 4536.00 | 324 |
| 1540-14M | 1540.00 | 110 | 4578-14M | 4578.00 | 327 |
| 1568-14M | 1568.00 | 112 | 4760-14M | 4760.00 | 340 |
| 1610-14M | 1610.00 | 115 | 4956-14M | 4956.00 | 354 |
| 1652-14M | 1652.00 | 118 | 5040-14M | 5040.00 | 360 |
| 1750-14M | 1750.00 | 125 | 5740-14M | 5740.00 | 410 |
| 1764-14M | 1764.00 | 126 | 6160-14M | 6160.00 | 440 |
| 1778-14M | 1778.00 | 127 | 6860-14M | 6860.00 | 490 |
| 1792-14M | 1792.00 | 128 |
|
|
|
| 1806-14M | 1806.00 | 129 |
|
|
|
| 1820-14M | 1820.00 | 130 |
|
|
|
| 1890-14M | 1890.00 | 135 |
|
|
|
订购需知

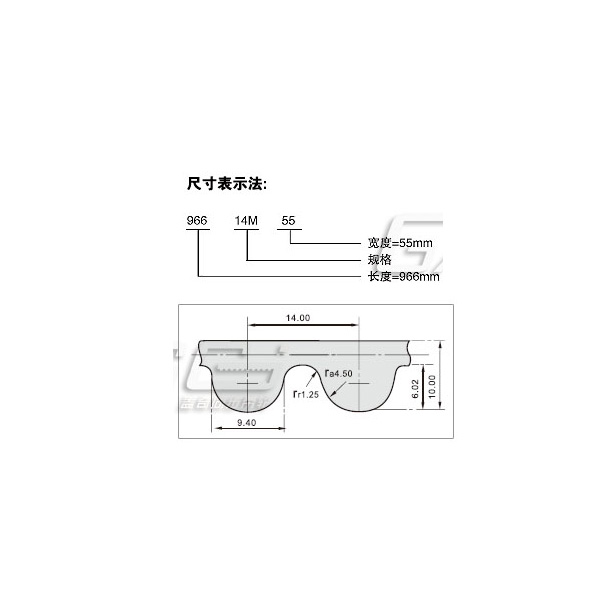

以上表格是HTD-14M型号的同步带系列中的一部分(模具增加，未及时更新)，同时我们还可以为您提供来图或者HTD-14M同步带样带生产加工，我们技术部也可按您提供HTD-14M型同步带齿数(节线长度=齿数*14.00), 宽度等参数来生产加工；如需要特殊规格型号或特殊性能要求（如阻燃、耐油、耐磨、抗静电、无毒等）本公司也可尽量满足客户的要求，给予定制。也可为您提供测绘同步带等服务。只要是您需要，我们就可以为您生产出您所需要的同步带，我们加工出来的HTD-14M同步带一定会让您满意.
