| 规格型号 | 节线长 | 齿数 | 规格型号 | 节线长 | 齿数 | 规格型号 | 节线长 | 齿数 |
| 180-5M | 180.00 | 36 | 600-5M | 600.00 | 120 | 1180-5M | 1180.00 | 236 |
| 200-5M | 200.00 | 40 | 605-5M | 605.00 | 121 | 1195-5M | 1195.00 | 239 |
| 210-5M | 210.00 | 42 | 610-5M | 610.00 | 122 | 1210-5M | 1210.00 | 242 |
| 215-5M | 215.00 | 43 | 615-5M | 615.00 | 123 | 1200-5M | 1200.00 | 240 |
| 225-5M | 225.00 | 45 | 620-5M | 620.00 | 124 | 1225-5M | 1225.00 | 245 |
| 235-5M | 235.00 | 47 | 625-5M | 625.00 | 125 | 1270-5M | 1270.00 | 254 |
| 250-5M | 250.00 | 50 | 630-5M | 630.00 | 126 | 1290-5M | 1290.00 | 258 |
| 255-5M | 255.00 | 51 | 635-5M | 635.00 | 127 | 1300-5M | 1300.00 | 260 |
| 265-5M | 265.00 | 53 | 640-5M | 640.00 | 128 | 1350-5M | 1350.00 | 270 |
| 270-5M | 270.00 | 54 | 645-5M | 645.00 | 129 | 1375-5M | 1375.00 | 275 |
| 280-5M | 280.00 | 56 | 650-5M | 650.00 | 130 | 1400-5M | 1400.00 | 280 |
| 285-5M | 285.00 | 57 | 655-5M | 655.00 | 131 | 1410-5M | 1410.00 | 282 |
| 295-5M | 295.00 | 59 | 665-5M | 665.00 | 133 | 1420-5M | 1420.00 | 284 |
| 300-5M | 300.00 | 60 | 670-5M | 670.00 | 134 | 1450-5M | 1450.00 | 290 |
| 305-5M | 305.00 | 61 | 675-5M | 675.00 | 135 | 1455-5M | 1455.00 | 291 |
| 310-5M | 310.00 | 62 | 685-5M | 685.00 | 137 | 1500-5M | 1500.00 | 300 |
| 320-5M | 320.00 | 64 | 690-5M | 690.00 | 138 | 1600-5M | 1600.00 | 320 |
| 325-5M | 325.00 | 65 | 695-5M | 695.00 | 139 | 1595-5M | 1595.00 | 319 |
| 330-5M | 330.00 | 66 | 700-5M | 700.00 | 140 | 1690-5M | 1690.00 | 338 |
| 340-5M | 340.00 | 68 | 710-5M | 710.00 | 142 | 1700-5M | 1700.00 | 340 |
| 345-5M | 345.00 | 69 | 715-5M | 715.00 | 143 | 1730-5M | 1730.00 | 346 |
| 350-5M | 350.00 | 70 | 720-5M | 720.00 | 144 | 1770-5M | 1770.00 | 354 |
| 360-5M | 360.00 | 72 | 725-5M | 725.00 | 145 | 1790-5M | 1790.00 | 358 |
| 365-5M | 365.00 | 73 | 740-5M | 740.00 | 148 | 1800-5M | 1800.00 | 360 |
| 370-5M | 370.00 | 74 | 745-5M | 745.00 | 149 | 1870-5M | 1870.00 | 374 |
| 375-5M | 375.00 | 75 | 750-5M | 750.00 | 150 | 1895-5M | 1895.00 | 379 |
| 380-5M | 380.00 | 76 | 755-5M | 755.00 | 151 | 1945-5M | 1945.00 | 389 |
| 385-5M | 385.00 | 77 | 770-5M | 770.00 | 154 | 2000-5M | 2000.00 | 400 |
| 390-5M | 390.00 | 78 | 775-5M | 775.00 | 155 | 2050-5M | 2050.00 | 410 |
| 395-5M | 395.00 | 79 | 780-5M | 780.00 | 156 | 2100-5M | 2100.00 | 420 |
| 400-5M | 400.00 | 80 | 790-5M | 790.00 | 158 | 2160-5M | 2160.00 | 432 |
| 405-5M | 405.00 | 81 | 800-5M | 800.00 | 160 | 2250-5M | 2250.00 | 450 |
| 410-5M | 410.00 | 82 | 810-5M | 810.00 | 162 | 2350-5M | 2350.00 | 470 |
| 420-5M | 420.00 | 84 | 825-5M | 825.00 | 165 | 2370-5M | 2370.00 | 474 |
| 425-5M | 425.00 | 85 | 830-5M | 830.00 | 166 | 2460-5M | 2460.00 | 492 |
| 430-5M | 430.00 | 86 | 835-5M | 835.00 | 167 | 2525-5M | 2525.00 | 505 |
| 435-5M | 435.00 | 87 | 850-5M | 850.00 | 170 | 3025-5M | 3025.00 | 605 |
| 440-5M | 440.00 | 88 | 860-5M | 860.00 | 172 | 3060-5M | 3060.00 | 612 |
| 445-5M | 445.00 | 89 | 870-5M | 870.00 | 174 | 3255-5M | 3255.00 | 651 |
| 450-5M | 450.00 | 90 | 890-5M | 890.00 | 178 | 3430-5M | 3430.00 | 686 |
| 460-5M | 460.00 | 92 | 900-5M | 900.00 | 180 | 3660-5M | 3660.00 | 732 |
| 465-5M | 465.00 | 93 | 920-5M | 920.00 | 184 | 3750-5M | 3750.00 | 750 |
| 470-5M | 470.00 | 94 | 925-5M | 925.00 | 185 | 3770-5M | 3770.00 | 754 |
| 475-5M | 475.00 | 95 | 935-5M | 935.00 | 187 | 3800-5M | 3800.00 | 760 |
| 480-5M | 480.00 | 96 | 940-5M | 940.00 | 188 | 4260-5M | 4260.00 | 852 |
| 490-5M | 490.00 | 98 | 950-5M | 950.00 | 190 | 5300-5M | 5300.00 | 1060 |
| 500-5M | 500.00 | 100 | 960-5M | 960.00 | 192 | 7000-5M | 7000.00 | 1400 |
| 505-5M | 505.00 | 101 | 965-5M | 965.00 | 193 |
|
|
|
| 510-5M | 510.00 | 102 | 975-5M | 975.00 | 195 |
|
|
|
| 520-5M | 520.00 | 104 | 980-5M | 980.00 | 196 |
|
|
|
| 525-5M | 525.00 | 105 | 1000-5M | 1000.00 | 200 |
|
|
|
| 535-5M | 535.00 | 107 | 1025-5M | 1025.00 | 205 |
|
|
|
| 540-5M | 540.00 | 108 | 1035-5M | 1035.00 | 207 |
|
|
|
| 550-5M | 550.00 | 110 | 1050-5M | 1050.00 | 210 |
|
|
|
| 560-5M | 560.00 | 112 | 1100-5M | 1100.00 | 220 |
|
|
|
| 565-5M | 565.00 | 113 | 1115-5M | 1115.00 | 223 |
|
|
|
| 570-5M | 570.00 | 114 | 1125-5M | 1125.00 | 225 |
|
|
|
| 575-5M | 575.00 | 115 | 1135-5M | 1135.00 | 227 |
|
|
|
| 585-5M | 585.00 | 117 | 1145-5M | 1145.00 | 229 |
|
|
|
| 590-5M | 590.00 | 118 | 1175-5M | 1175.00 | 235 |
|
|
|
订购需知

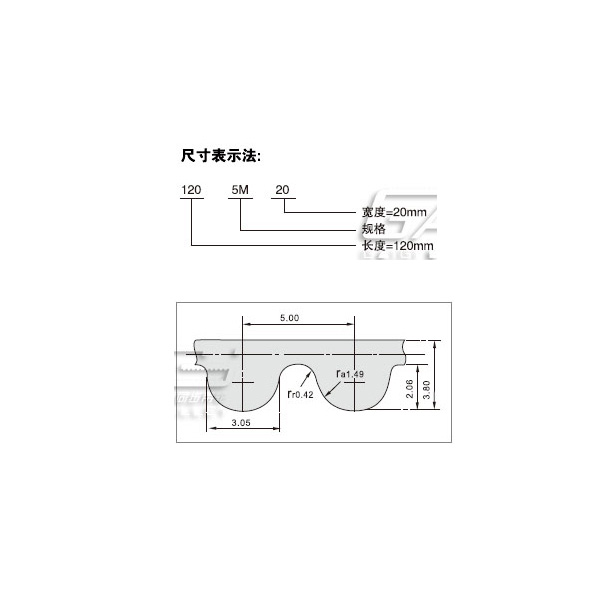

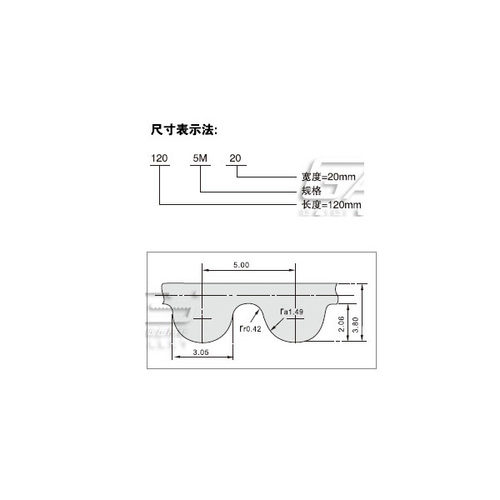

以上表格是HTD-5M型号的同步带系列中的一部分(模具增加，未及时更新)，同时我们还可以为您提供来图或者HTD-5M同步带样带生产加工，我们技术部也可按您提供HTD-5M型同步带齿数(节线长度=齿数*5.00), 宽度等参数来生产加工；如需要特殊规格型号或特殊性能要求（如阻燃、耐油、耐磨、抗静电、无毒等）本公司也可尽量满足客户的要求，给予定制。也可为您提供测绘同步带等服务。只要是您需要，我们就可以为您生产出您所需要的同步带，我们加工出来的HTD-5M同步带一定会让您满意.
